TRIO 560 - 90KW RING DIE PELLET MAKING MACHINE 1.5 TPH CATEGORY

TRIO 560 - 90KW RING DIE PELLET MAKING MACHINE 1.5 TPH CATEGORY Specification

WorkingSpeed
1440 RPM

Cooling System
Radiator Fan

Control System
Fully Automatic

Model No
TRIO 560

Lubricating System
Oil Pump and Grease Pump

Motor Power
90 kW Kilowatt (kW)

Power Rating
90 kW

Country Of Origin
India

Machine Type
Vertical Ring Die Pellet Machine

Features
Heavy-Duty Vertical Ring Die Pellet Machine, 90 kW Main Motor, 1-1.5 TPH Production Capacity, 6-12 mm Pellet Size, Smart IoT Panel with VFD, 2 Roller Assemblies, 1 Die, 2.2 kW Kickout Motor, 0.75 kW Oil Pump, 0.2 kW Grease Pump, 0.75 kW Mini Cyclone, Radiator Fan, Suitable for Biomass Fuel Pellet Manufacturing. Copy Features

Product Type
Agricultural Machine

Technology
Other

Power Source
Electricity

Operating Type
Automatic

Power
90 kW / Approx. 120.7 HP Horsepower (HP)

Surface Treatment
Painted

Dimension (L*W*H)
270 160 190 cm Centimeter (cm)

Weight (kg)
5000 kg Kilograms (kg)

Color
Silver & Blue

Warranty
1 Yea

Production Capacity
1-1.5 tone Ton

Usage & Applications
Biomass Fuel Pellet Manufacturing, Agricultural Waste Processing, Renewable Energy Production

TRIO 560 - 90KW RING DIE PELLET MAKING MACHINE 1.5 TPH CATEGORY Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
12 Pieces Per Month

Delivery Time
12

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
TRIO Vertical Ring Die Pellet Machines are packed with suitable protective materials to ensure safe handling, loading and transportation. Packaging arrangements may include protective wrapping, secure fastening and wooden or metal support structures, depending on machine size and transportation requirements. Special packaging requirements can be discussed at the time of order confirmation.

Main Domestic Market
All India

Certifications
is a legally registered Indian company with the following statutory registrations and business documents: 1. - Registered under the Ministry of Corporate Affairs (MCA), Government of India. 2. - GST-registered business. 3. - Registered under the Micro, Small and Medium Enterprises (MSME) framework. 4. ( ) - Holds an IEC for international trade activities. 5. ( ) - Corporate registration details maintained with the MCA, Government of India.

About TRIO 560 - 90KW RING DIE PELLET MAKING MACHINE 1.5 TPH CATEGORY

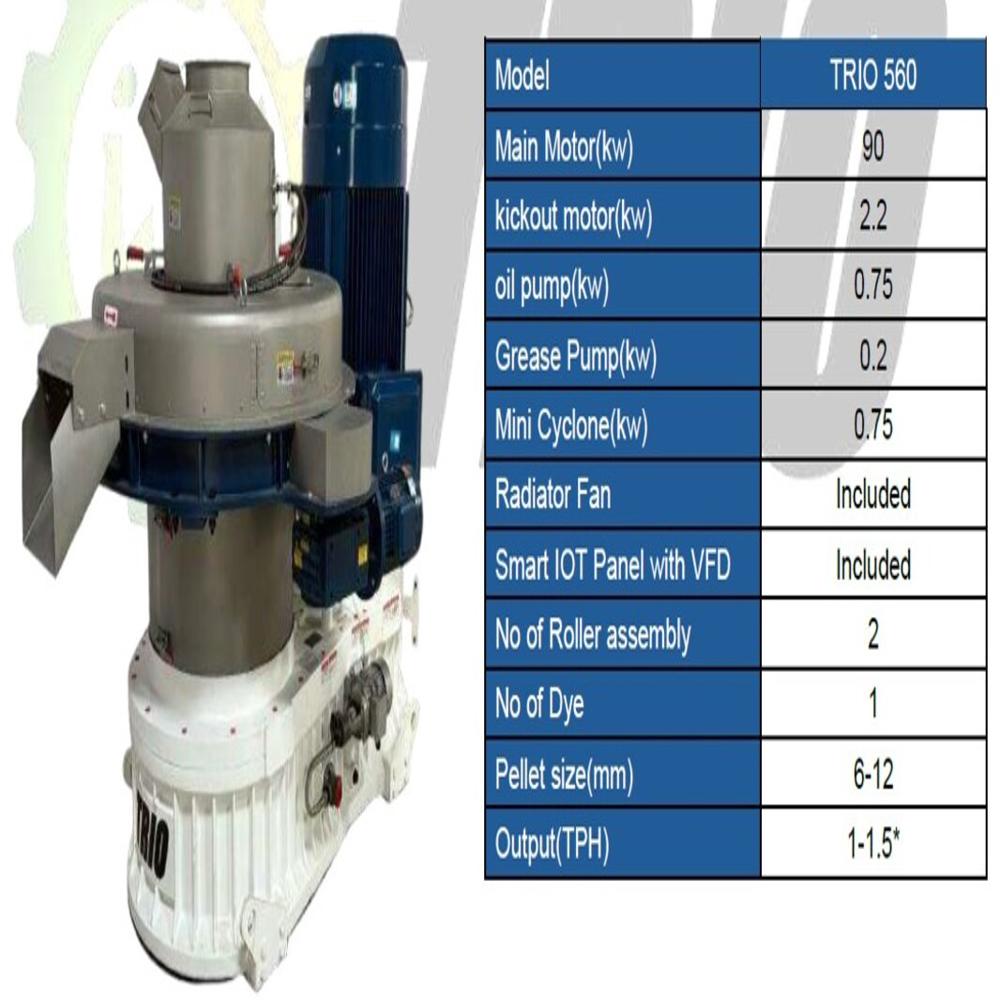

TRIO 560 Vertical Ring Die Biomass Pellet Making Machine - 90 kW

The TRIO 560 Vertical Ring Die Pellet Machine by TRIO Renewable Engineering Pvt. Ltd. is designed for efficient biomass pellet manufacturing. Equipped with a 90 kW main motor, this machine offers an indicative production capacity of 1.0 to 1.5 tons per hour (TPH), making it suitable for commercial biomass pellet production.

The machine uses advanced vertical ring die technology to compress processed biomass and agricultural residues into high-density fuel pellets. It is designed to support continuous pellet production and efficient utilization of biomass resources.

Key Features:
